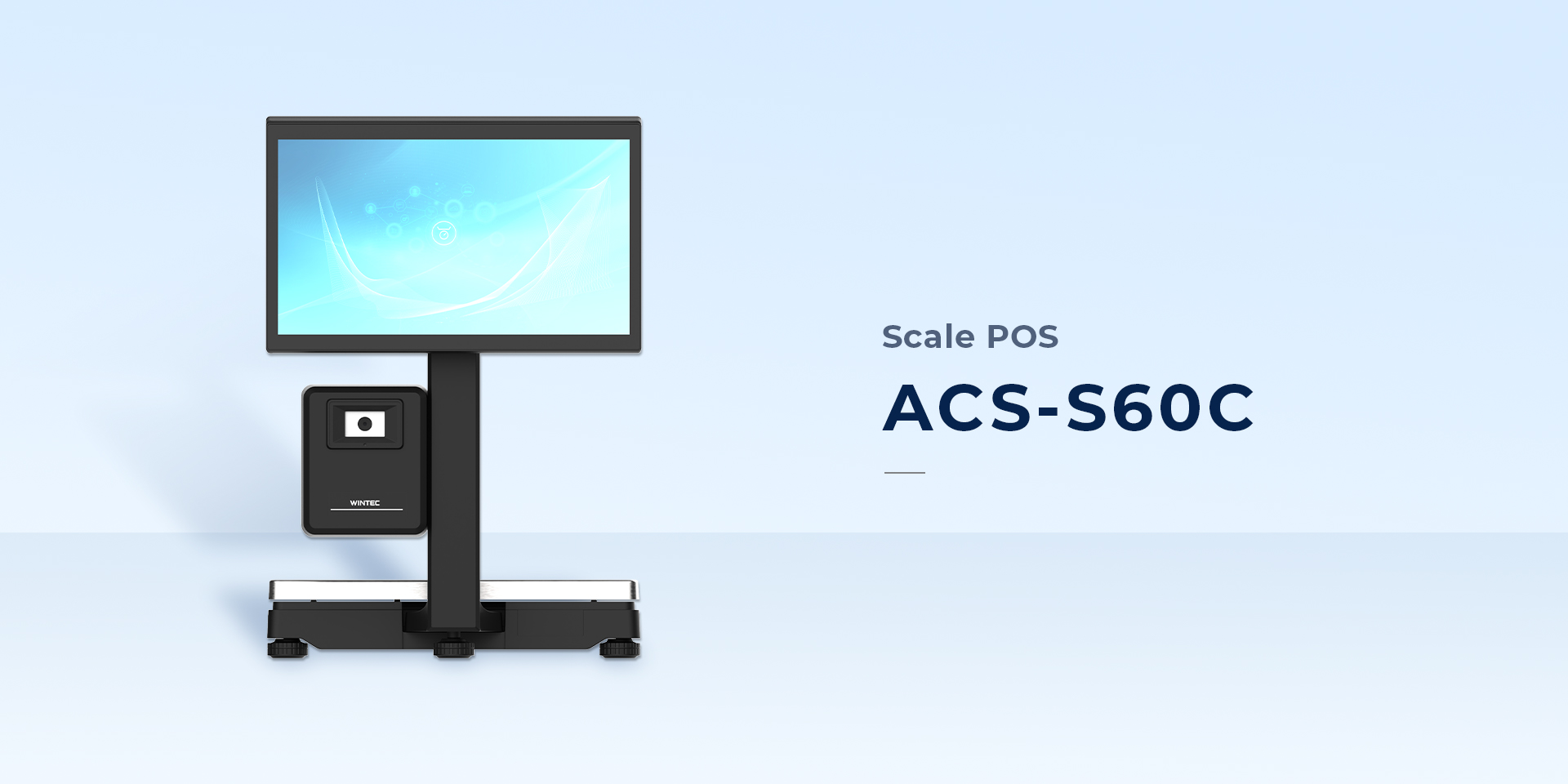

ACS-S60C

Specification Drivers
Details Parameter

图层 1.jpg

图层 2.jpg

图层 3.jpg

图层 4.jpg

图层 5.jpg

图层 6.jpg

图层 7.jpg

Windows Android Specification
  • CPU

    N97 Quad Core 2.0GHz 3.6GHz (Turbo)

  • Memory

    8GB, up to 32GB

  • Hard disk

    128GB, up to 512GB

  • Display screen (main)

    15.6" LCD, 1920*1080 (PCAP)

  • Display screen (auxiliary)

    15.6"LCD, 1920*1080 (PCAP)
    11.6"LCD, 1920*1080 (PCAP)

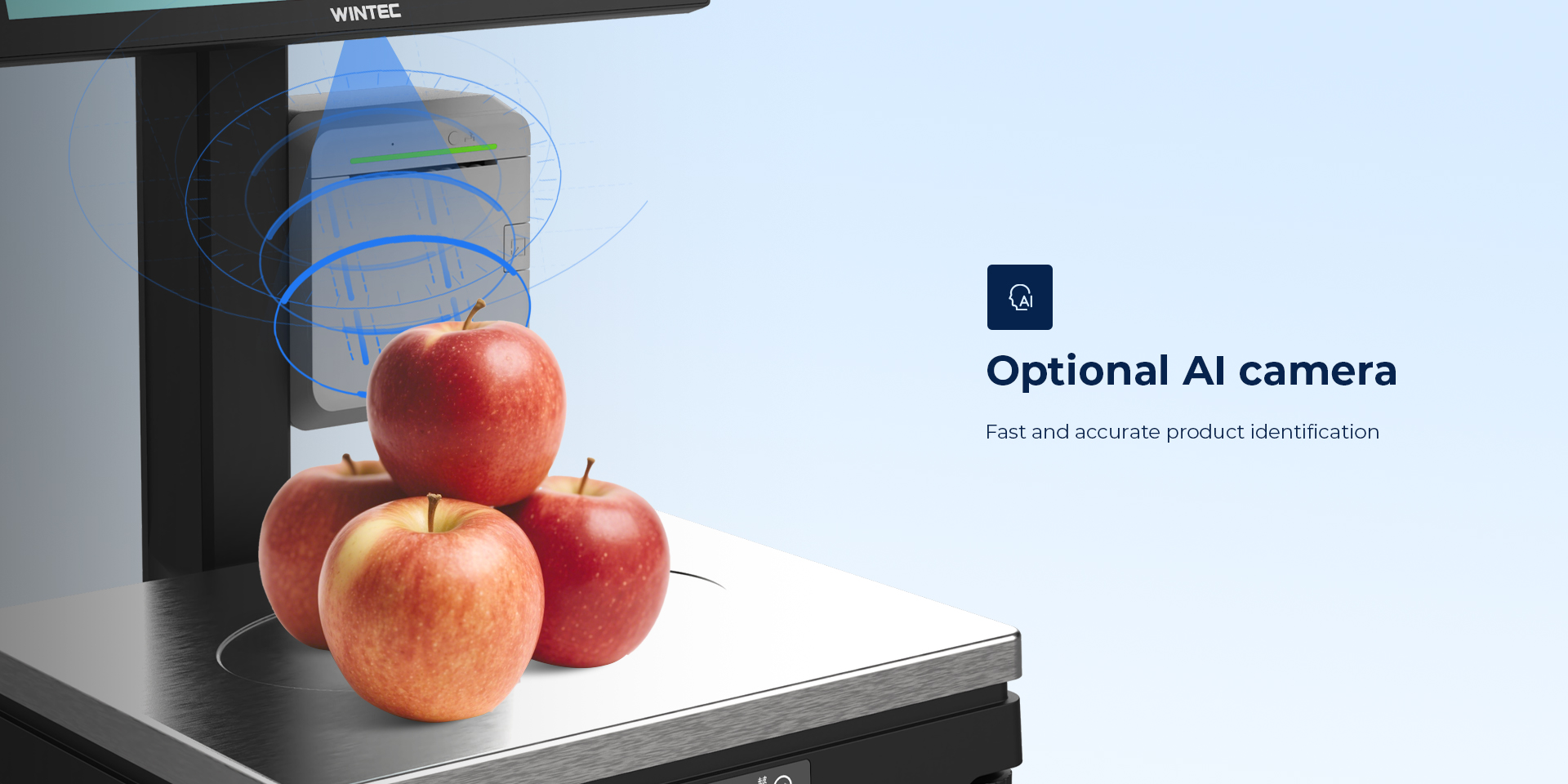

  • Camera

    2D Camera (200W pixels, wide dynamic)

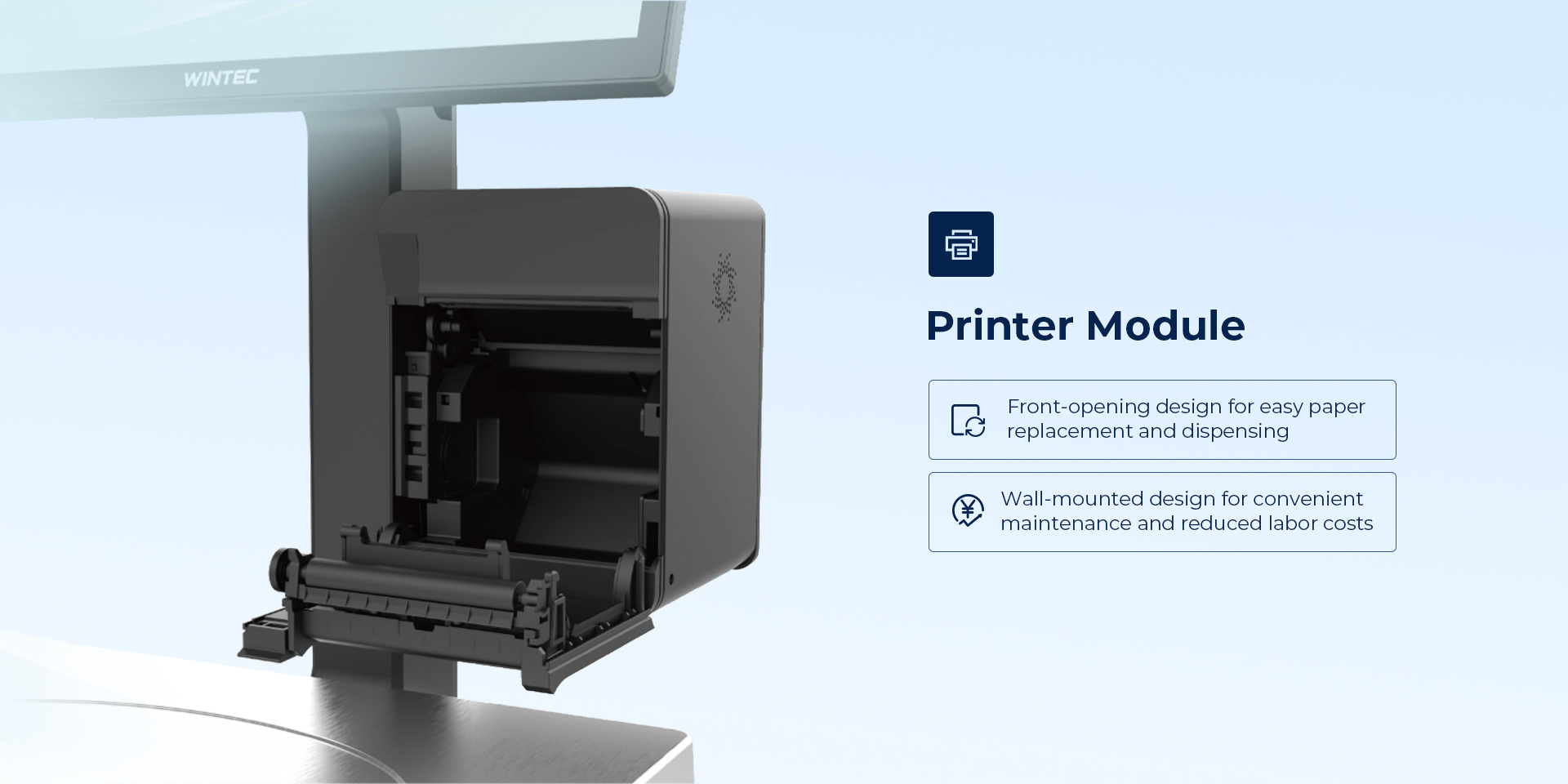

  • Printer

    80mm thermal printer, support 80mm paper rolls

  • External interface

    4*USB(2*USB3.0), 2* RS232(RJ48), 1*RJ45, 1*DK, 1*24V in, 1*HDMI

  • Horn

    1*5W

  • Ethernet

    10/100/1000M

  • Operating system

    Win11, Linux

  • Power supply

    AC input 100~240V, 50-60Hz
    DC Output 24V/2.5A

  • Overall dimensions

    368*411*522 (mm)

  • Weighing

    Range:6/15kg; Accuracy:2/5g
    Range:15/30kg Accuracy:5/10g

  • Scale pan size

    368*278 (mm)

  • Options

    LED scale digital display MSR (3 tracks) RFID card reader

  • CPU

    RK3568 Quad Core A55 2.0GHz

  • Memory

    4GB

  • Hard disk

    32GB

  • Display screen (main)

    15.6" LCD, 1920*1080 (PCAP)

  • Display screen (auxiliary)

    15.6"LCD, 1920*1080 (PCAP)
    11.6"" LCD, 1920*1080 (PCAP)

  • Camera

    2D Camera (200W pixels, wide dynamic)

  • Printer

    80mm thermal printer, support 80mm paper rolls

  • External interface

    4*USB(1*USB3.0), 2*RS232(RJ48), 1*RJ45, 1*DK, 1*24V in, 1*Micro USB, 1*HDMI

  • Horn

    1*5W

  • Ethernet

    10/100/1000M

  • Operating system

    Android 11

  • Power supply

    AC input 100~240V, 50-60Hz
    DC Output 24V/2.5A

  • Overall dimensions

    368*411*522 (mm)

  • Weighing

    Range:6/15kg; Accuracy:2/5g
    Range:15/30kg Accuracy:5/10g

  • Scale pan size

    368*278 (mm)

  • Options

    LED scale digital display MSR (3 tracks) RFID card reader
