AnyPOS100

Specification Drivers Brochure
Details Parameter

图层 1.jpg

图层 2.jpg

图层 3.jpg

图层 4.jpg

图层 5.jpg

图层 6.jpg

图层 7.jpg

Windows Android Specification
  • CPU

    N95, Quad Core upto 3.4GHz i3-1235U, 6 cores 2.5GHz, 4.4GHz (Turbo) i5-1235U, 10 cores 2.5GHz, 4.4GHz (Turbo)

  • Memory

    8GB, upto 32GB

  • Hard disk

    8GB, upto 32GB

  • Display screen (main)

    15.6"LCD 1920*1080/1366*768(PCAP)

  • Display screen (auxiliary)

    7"LCD 1024*600 (PCAP)
    11.6"LCD 1366*768 (PCAP)
    15.6"LCD 1920*1080/1366*768(PCAP)

  • Printer

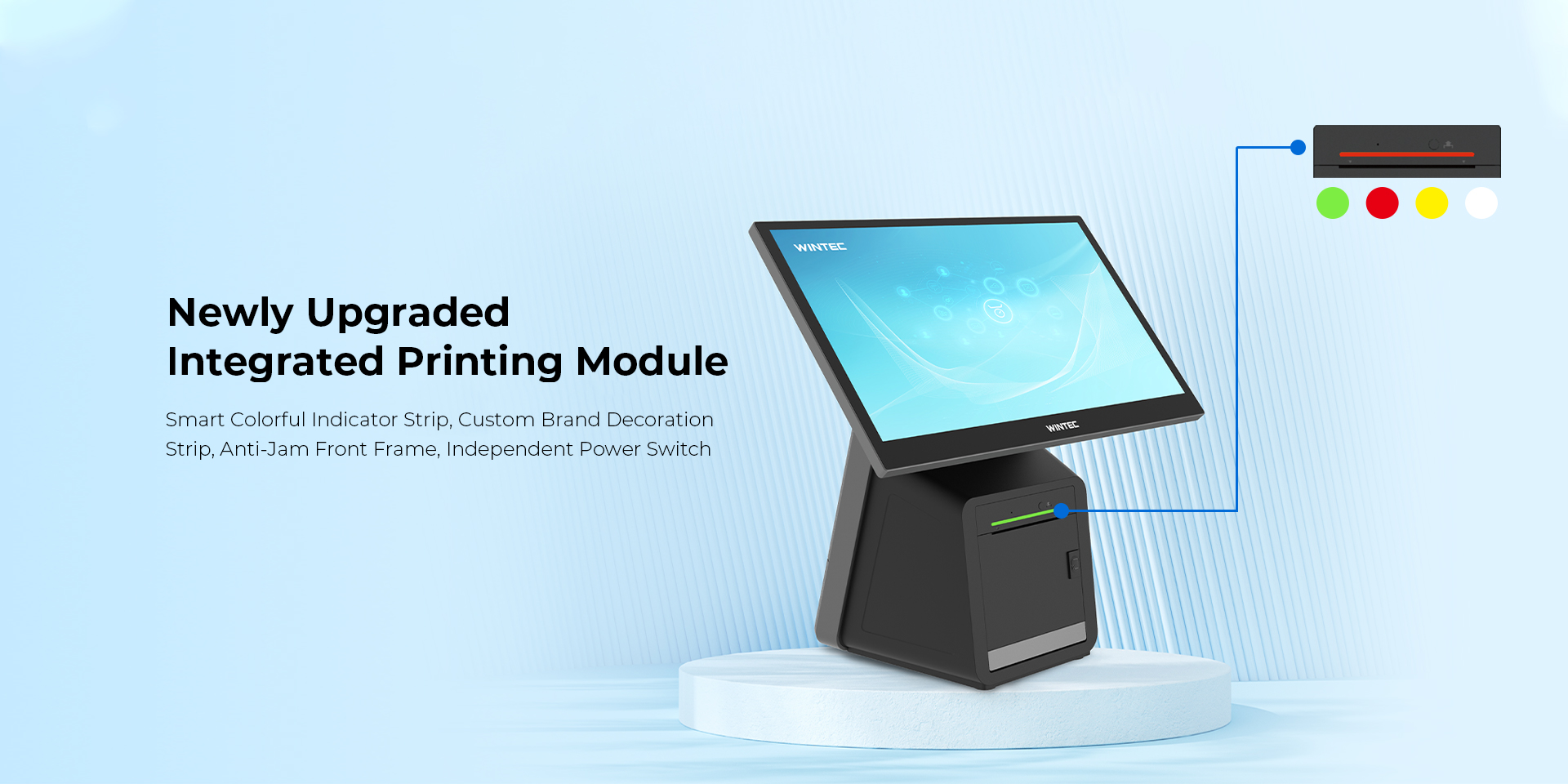

    80mm thermal printer w/auto cutter

  • External interface

    7*USB (2*USB3.0), 2*RS232 (RJ48), 2*RS232 (DB9), 1*RJ45, 1*DK, 1*24V DC_IN, 1*HDMI

  • Horn

    1*5W

  • Ethernet

    1*10/100/1000M

  • WiFi

    WiFi 2.4/5GHz +BT4.2

  • Operating system

    WIN10，WIN11, Linux

  • Power supply

    AC input 100~240V, 50-60Hz
    DC Output 24V/2.5A

  • Overall dimensions

    367*225*375

  • Options

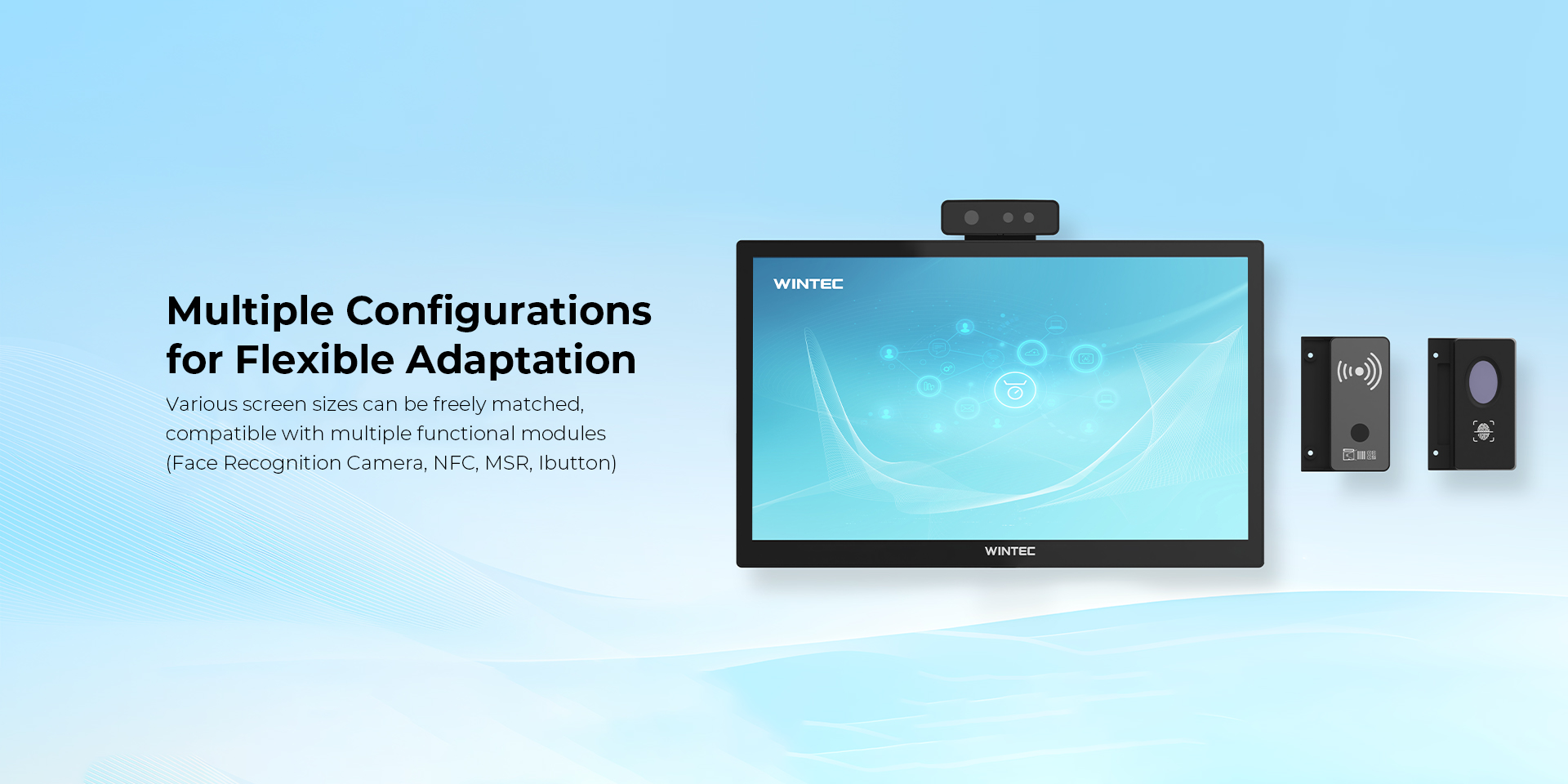

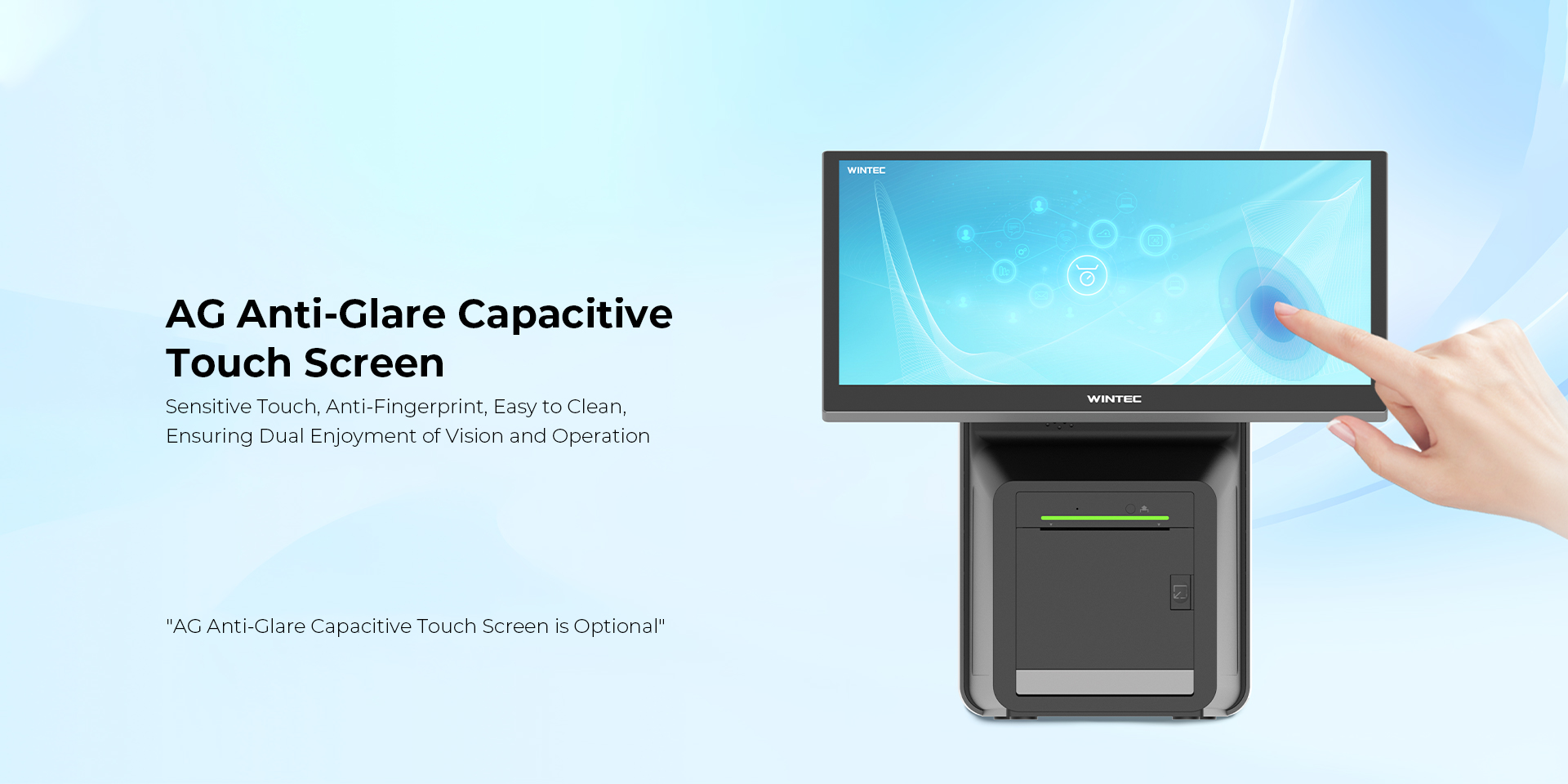

    NFC、MSR、lbutton,2D/3D Camera,AG anti-glare capacitive touch screen

  • CPU

    RK3568 Cotex A55 Quad core 2.0GHz

  • Memory

    4GB

  • Hard disk

    32GB

  • Display screen (main)

    15.6"LCD 1920*1080/1366*768(PCAP)

  • Display screen (auxiliary)

    7"LCD 1024*600 (PCAP)
    11.6"LCD 1366*768 (PCAP)
    15.6"LCD 1920*1080/1366*768(PCAP)

  • Printer

    80mm thermal printer w/auto cutter

  • External interface

    5*USB (2*USB3.0), 2*RS232 (RJ48), 2*RS232 (DB9), 1*RJ45, 1*DK, 1*24V DC_IN, 1*HDMI

  • Horn

    1*5W

  • Ethernet

    1*10/100/1000M

  • WiFi

    WiFi 2.4/5GHz +BT4.2

  • Operating system

    Android 11

  • Power supply

    AC input 100~240V, 50-60Hz
    DC Output 24V/2.5A

  • Overall dimensions

    367*225*375

  • Options

    NFC、MSR、lbutton,2D/3D Camera,AG anti-glare capacitive touch screen
